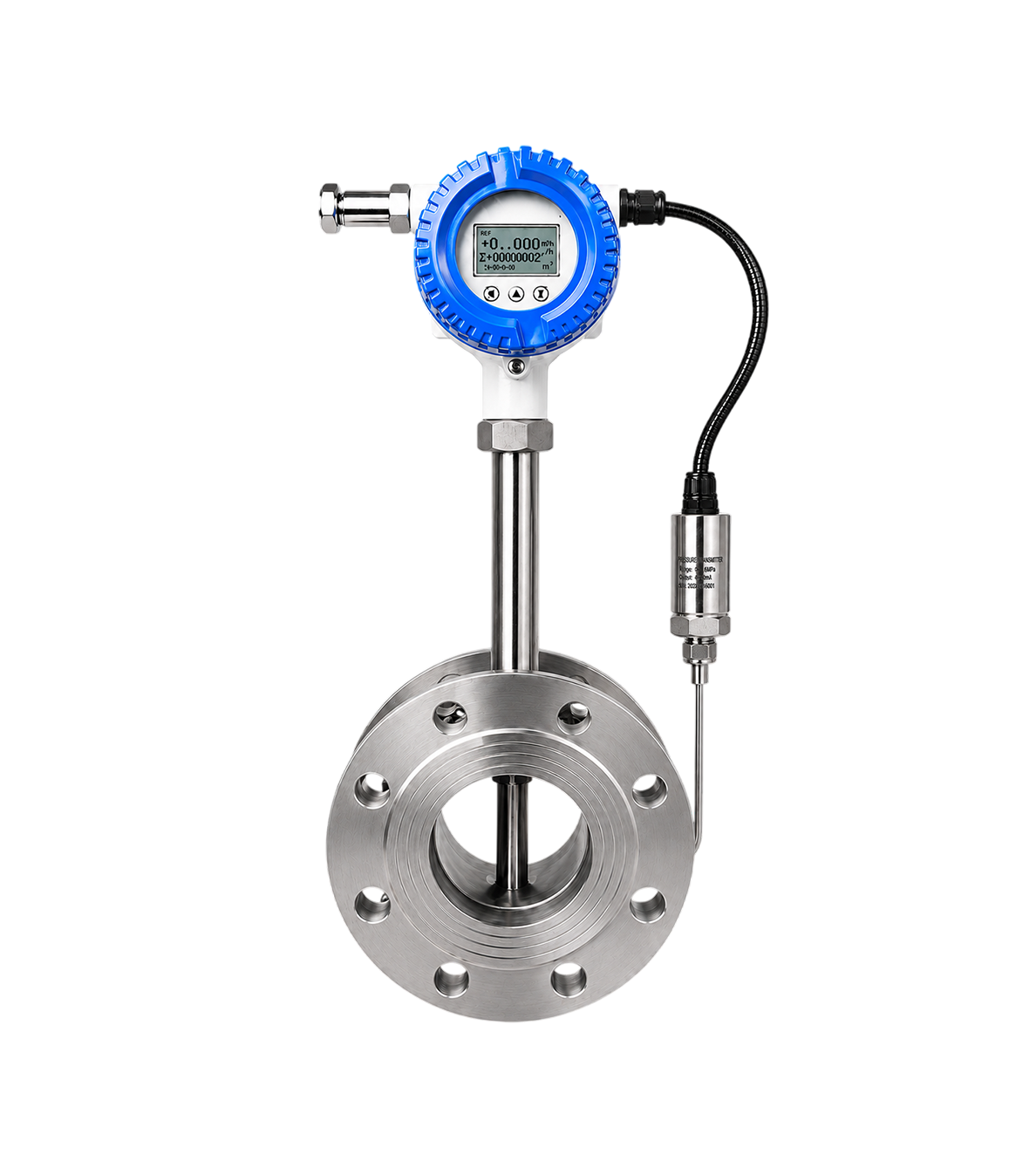

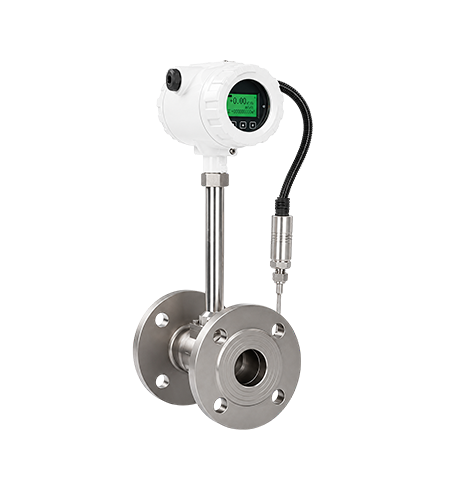

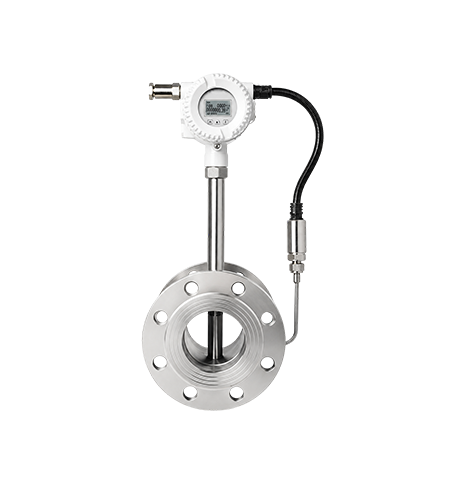

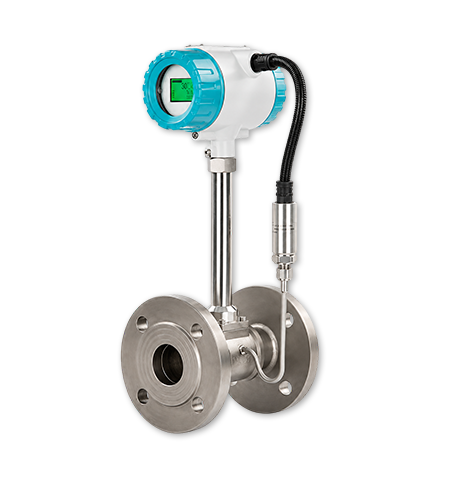

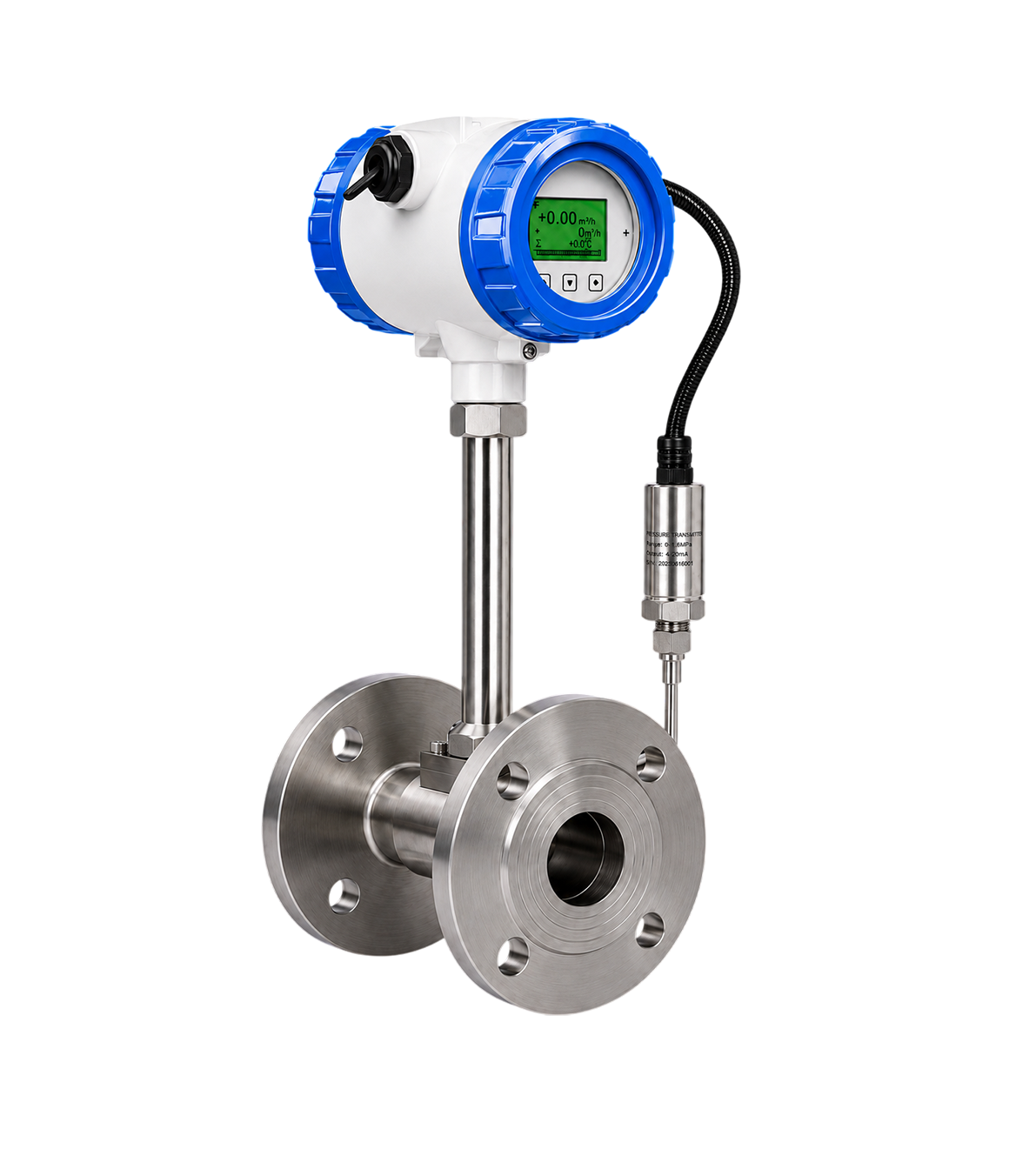

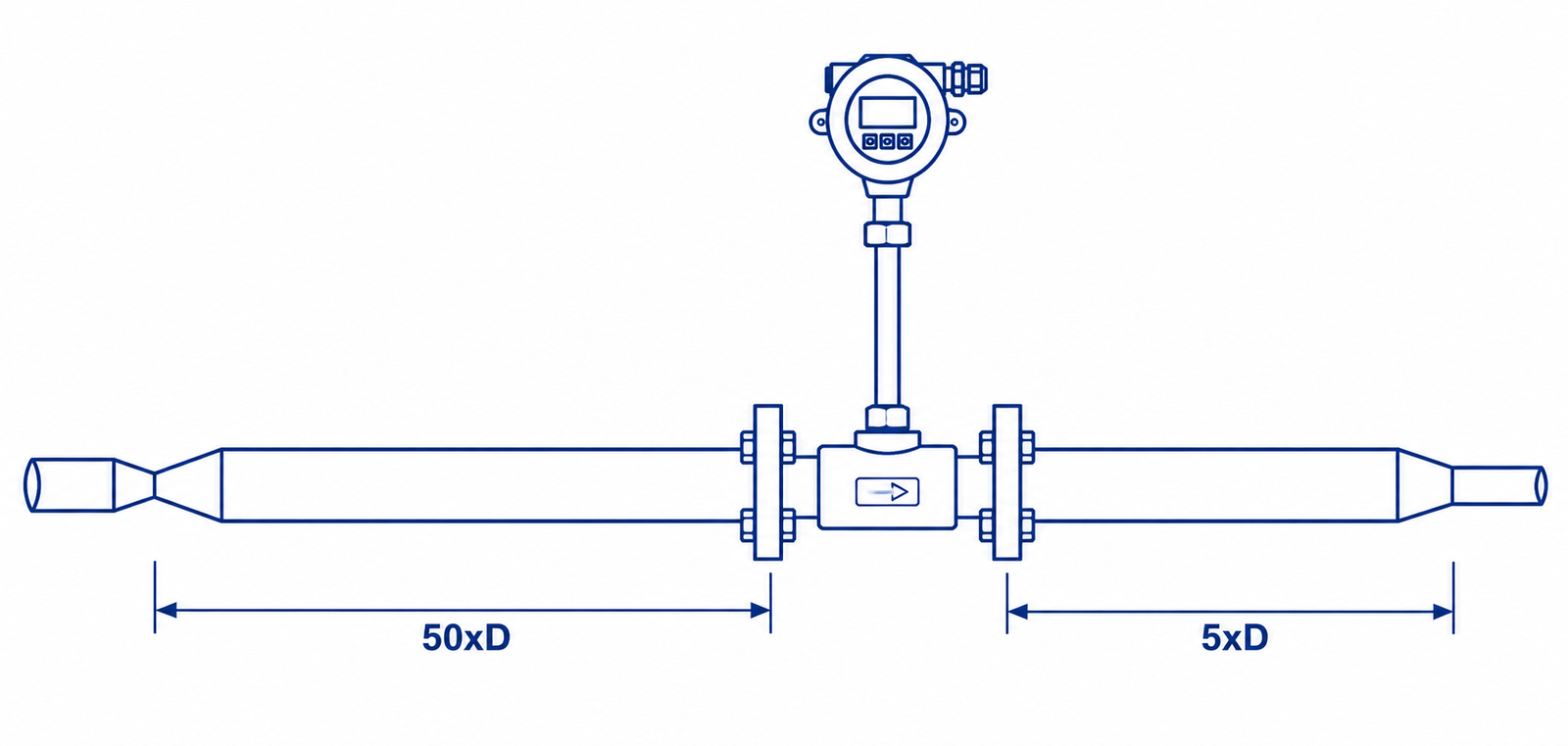

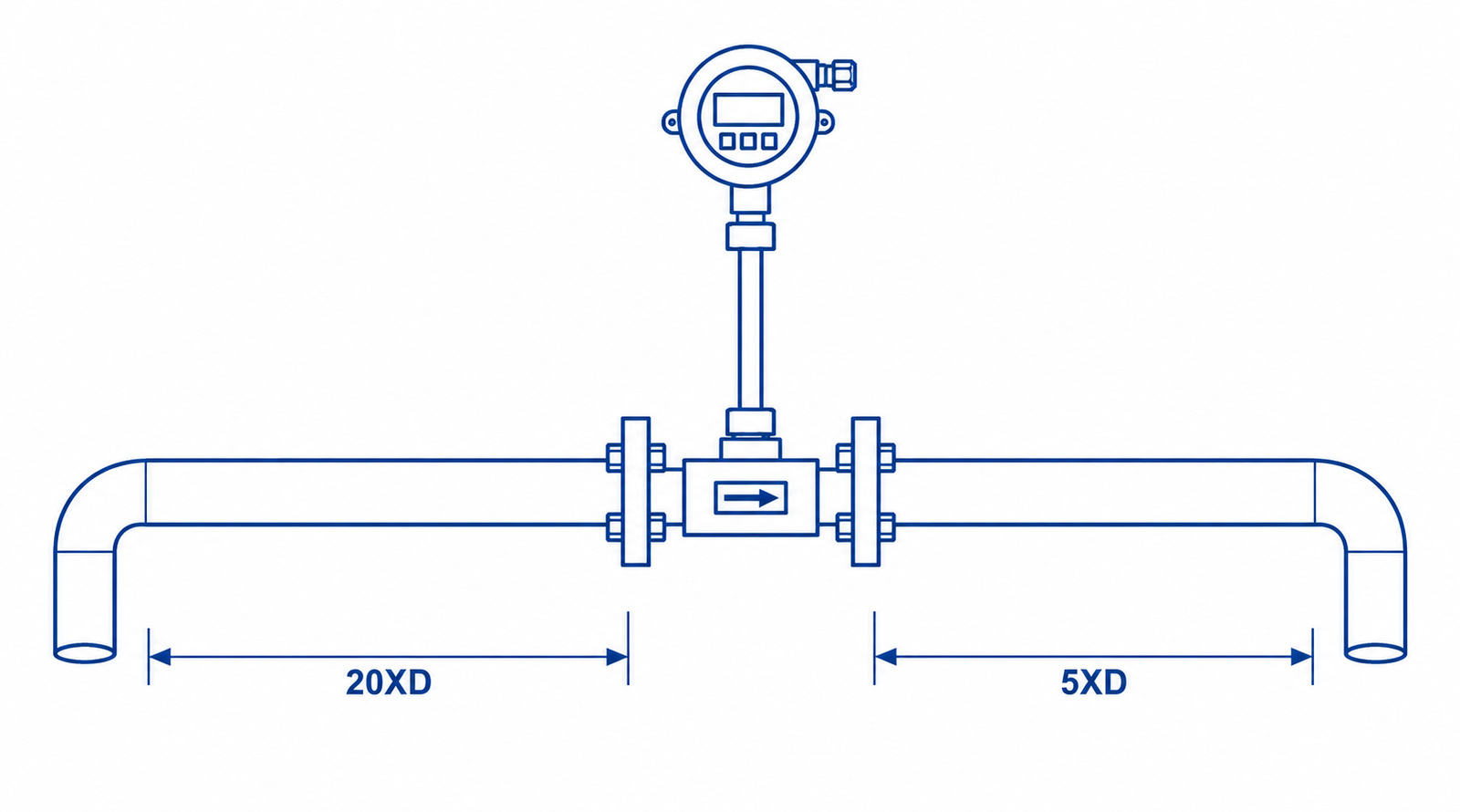

Vortex Flow Meter

Introduction

Flange vortex flow meter is used in numerous branches of industry to measure the volume flow of liquids, gases and steam. Applications in the chemicals and petrochemicals industries, for example, in power generation and heat-supply systems involve widely differing fluids: saturated steam, superheated steam, compressed air, nitrogen, liquefied gases, flue gases, carbon dioxide, fully demineralized water, solvents, heat-transfer oils, boiler feedwater, condensate, etc.

Advantages

Vortex flow meter advantages and disadvantages

Vortex flow meter body is robust and universally applicable for liquids, gases and steam,optimized for steam applications. For gases measurement, if the gas temperature and pressure change a lot, pressure and temperature compensation will be a must, vortex flow meter could add temperature and pressure compensation.

Q & T Vortex flow meter adopt Japan OVAL technology and design.

To protect the sensor, Q&T vortex flow meter choose embedded sensor, with 4 piezo-electric crystal encapsulated inside the sensor, which is our own patent.

There is no moving parts, no abrasion, non-wearing parts inside the vortex flow meter sensor, fully welded SS304 body (SS316 selectable).

With patented sensor and flow sensor body, Q&T vortex flow meter could eliminate drift & vibration influence from great aspect in the working site while compare with other flow meters.

Apart from electromagnetic flow meter and ultrasonic flow meter could work as flow meter and BTU meter, add the temperature sensor and totalizer, vortex flow meter could also work as BTU meter and measure steam or hot water energy.

Requires very few power consumption: 24 VDC, 15 Watts maximum;

In gas measurement, vortex flow meter could achieve high accuracy ±0.75%~±1.0% of reading ( gas ±1.0%, liquid ±0.75%); which could use in custody transfer , while the metal tube rotameter or orifice plate usually use for process control.

With a variety of signals outputs and selection, such as 4-20mA, pulse with HART or pulse with RS485 are selectable.

In the electronic device of measuring flow, vortex flow meter is the only one could resist wide temperature range up to highest temperature 350℃, digital flow meter highest process temperature.

Application

Vortex flow meter application

Vortex flow meter is professional in measuring non-conductive liquids, gases, saturated and superheated steam, especially for steam measurement trade settlement. Except work as flow meter, vortex flow meter can also work as heat meter to measure the Gross/net heat of steam and hot water.

Vortex flow meter usually monitor the compressor output and evaluation of Free Air Delivery (FAD)

There has lots of Industrial gases, such as natural gas, nitrogen gas, liquefied gases, flue gases, carbon dioxide etc, all could use vortex flow meter.

In many factories, compressed air monitoring is very important, vortex flow meter also could use for process control.

Besides the different gases measurement, vortex flow meter could also used for light oil or any purified water，such as thermal oils, Desalinated water, demineralized water, RO water, boiler feed water, condensate water etc.

In the Chemicals and petrochemicals industries, there also has lots of gases or liquid could use vortex flow meter for monitoring.

• Water Treatment
• Food Industry
• Pharmaceutical Industry
• Petrochemical
• Paper Industry
• Chemical Monitoring
• Metallurgical Industry
• Public Drainage
• Coal Industry

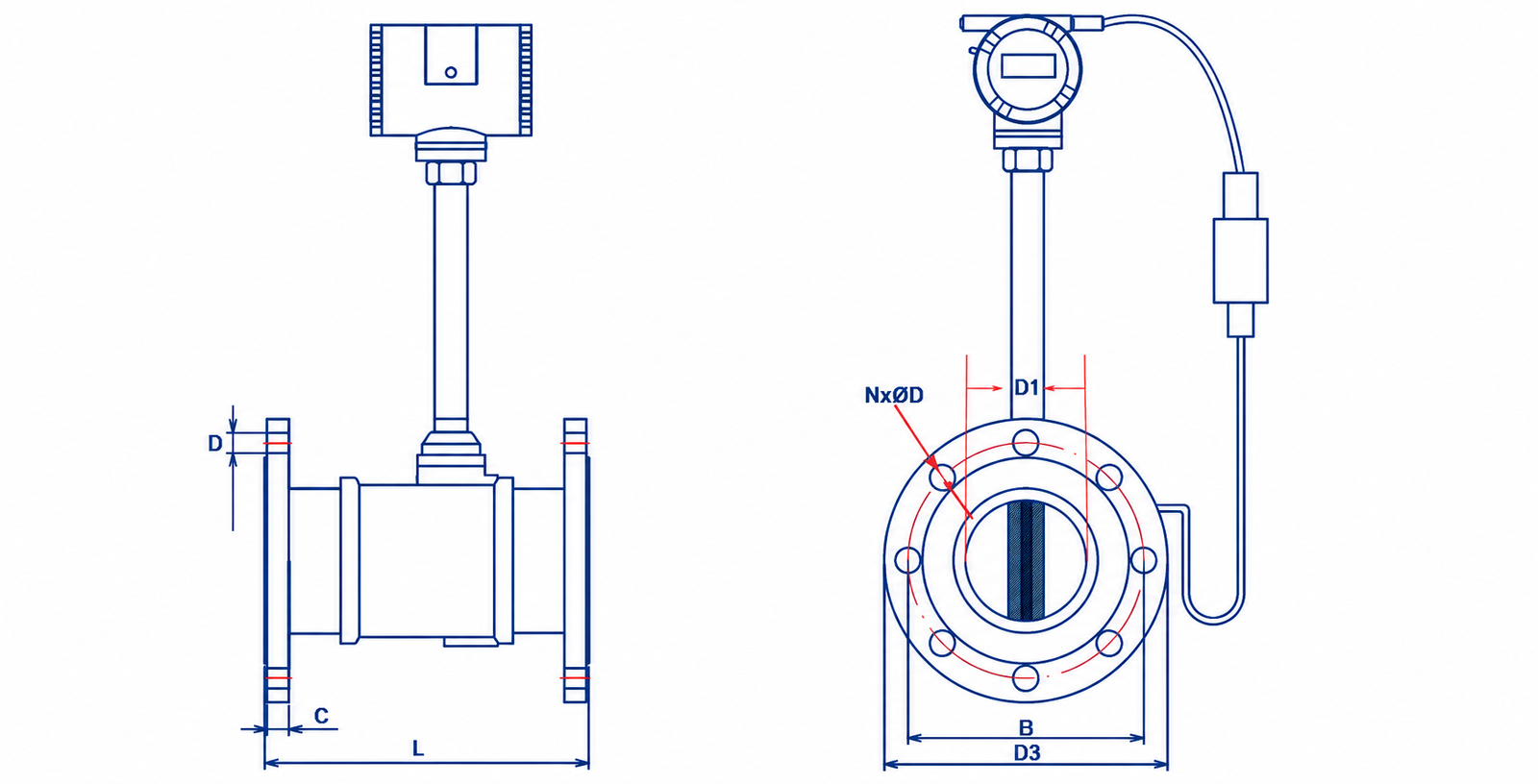

Technical Data

Table 1: Flange Magnetic Flow Meter Main Performances Parameters
