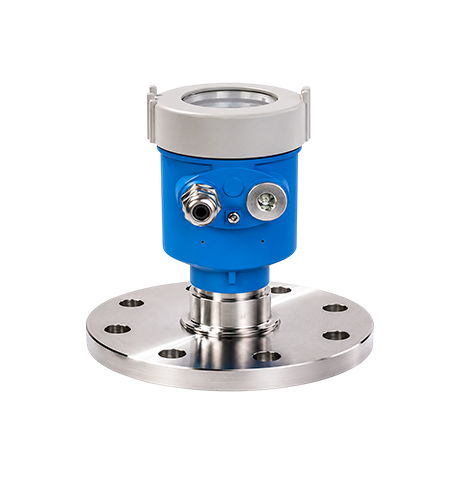

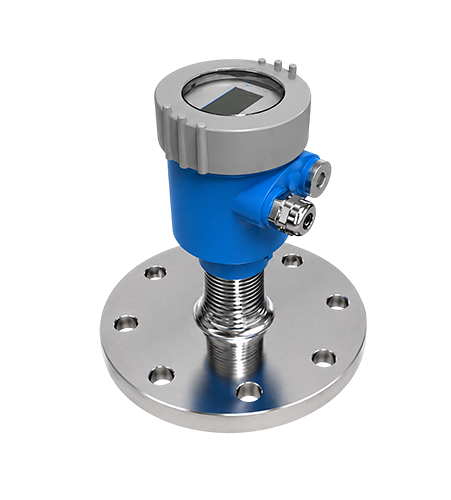

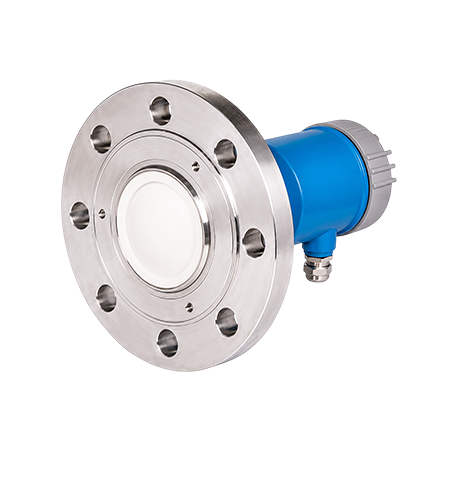

A flange is a critical mounting component for radar level sensors, acting as the secure and sealed interface between the sensor and the process tank or vessel. For SKE radar sensors, the flange is not just a mechanical holder; it ensures the signal can be transmitted effectively into the vessel and prevents leaks of process material.
The standard flange sizes for SKE radar sensors (like the popular SKE-R800 series) typically start from DN 50 and go up to larger diameters like DN 125 or more, depending on the application and antenna size.
The flange is a vital accessory for SKE radar level sensor. Selecting the correct size, type, and material ensures a safe, leak-proof, and high-performance installation for accurate and reliable level measurement.
Face Type: Raised Face (RF).
| Radar Level | Two wire system |
| Measuring Range - Distance | 10m / 20m |
| Accuracy | ±2 mm |
| Power Supply | DC 24V (22V~30V) |
| Ambient Temperature | -20°C ~ +70°C |
| Process Temperature | -20°C to 60°C (-20 to +140°F) |
| Ambient Humidity | 0% ~ 95% RH |
| Process Pressure | Normal atmospheric pressure |
| Weight | 3.8 kg |
| The Corresponding Imperial Size | 2 inch |
| Material | Stainless Steel |
| Protection Rating | IP67 |
