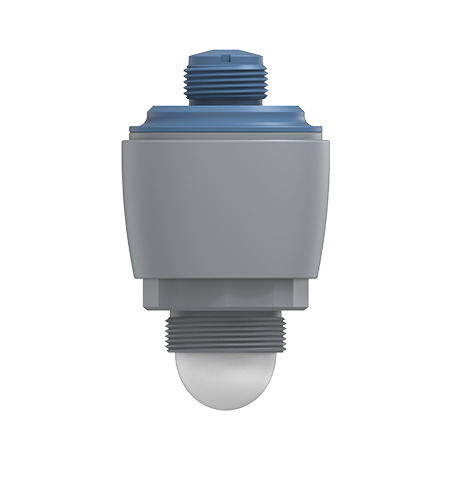

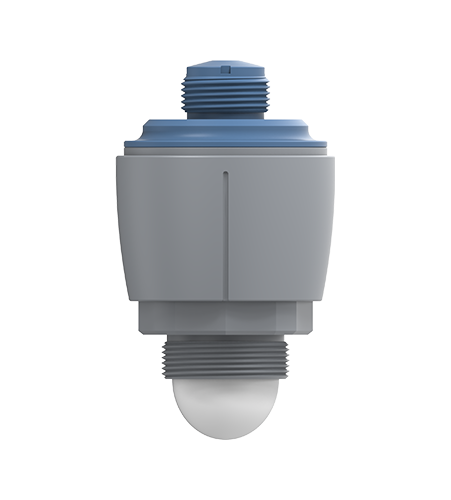

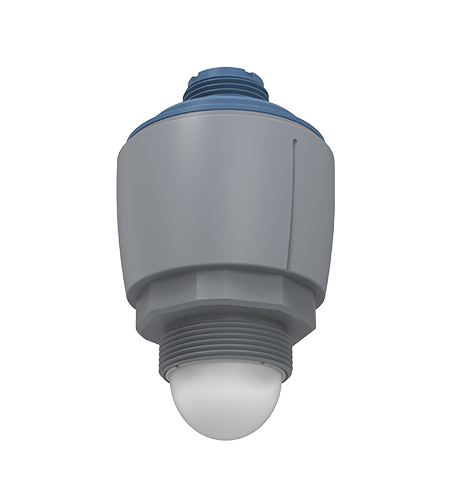

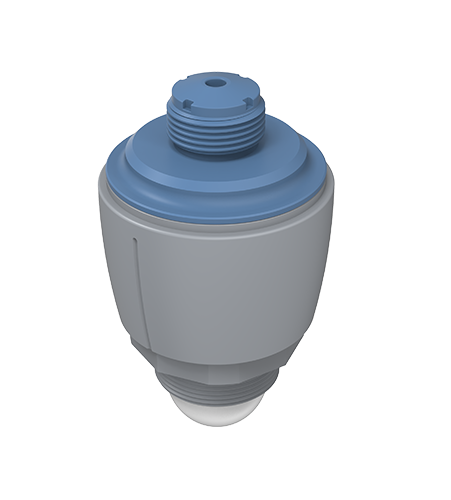

Integrated 80GHz radar level transmitter sensor for liquids is the ideal sensor for non-contact level measurement in various applications where a high degree of protection is required. It is particularly suitable for water treatment, pumping stations, rain overflow basins and level monitoring. medicion de nivel por radar, medidor de nivel tipo radar.
This SK-R800E model comes with Certification issued under the authority of the Federal communications commission.
Frequency modulation continuous wave (FMCW) technology is adopted in the object level meter of 80GHz radar level transmitter. The continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a certain frequency difference with the transmitted signal. The distance information between the target and the radar can be obtained by measuring the frequency difference.
| Measuring Range / Distance | 10m / 20m / 30m |
| Accuracy | ±2 mm |
| Signal Output | 4~20mA / Modbus / Bluetooth |
| Power Supply | Two-wire DC 24V (22V~30V) |
| Ambient Temperature | -20°C ~ +70°C |
| Ambient Humidity | 0% ~ 95% RH |
| Protection Rating | IP67 |
| Display | Mobile Phone APP |
| Material (Wetted Parts) | GFPP |
| Beam Angle | ±5° |
| Weight | 0.35 kg |
| Size | φ76 mm × 107 mm |
