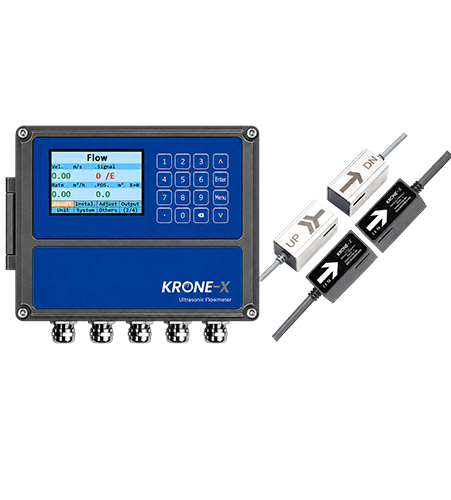

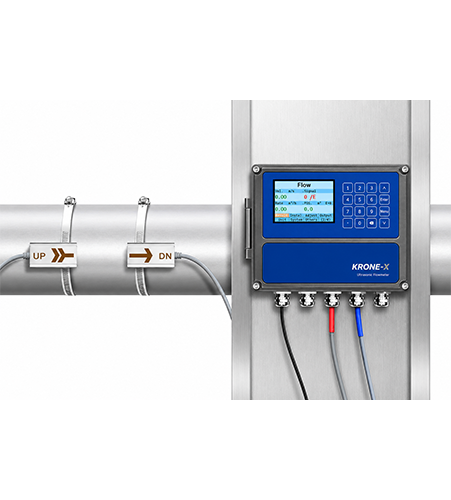

Ultrasonic Flow Meter is a wall-mount, clamp-on type ultrasonic flowmeter which uses the transfer time technology. Designed using FPGA chip and low-voltage broadband pulse transmission.
Both Clamp on type sensors and Insertion type sensors are available.
The ultrasonic flowmeter has a 320*480 back lit Color TFT with 10 line menu display and also the clear,user-friendly menu selections make flow meter more simple and convenient to use.
Daily, monthly and yearly totalized flow.
Parallel operation of positive, negative and netflow totalizes with scale factor (span) and BTU Capacity. While the output of totalize pulse and frequency output are transmitted via relay and open collector.
The ultrasonic flowmeter could add the RTD model and temperature sensor become an energy meter to monitoring the energy use, help to save the energy.
The ultrasonic flowmeter is equipped with an all-metal casing, providing high protection. It has excellent conductivity and heat conductivity, and boasts outstanding durability and impact resistance.
Inline ultrasonic flow meter could connect temperature sensor to become one calorimeter and widely be used in Food industry, Oil & Gas industry, Chemical industry,Water treatment industry, Trade settlement,Power industry
| Performance | |
| Flow Range | ±0.03m/s ~ ±12m/s |
| Accuracy | ±1% of Measured Value |
| Repeatability | 0.2% of Measured Value |
| Linearity | ±1% |
| Pipe Size | DN25mm ~ DN1200mm |
| Function | |
| Outputs |
Analog Output: 4~20mA, Max Load 750Ω Pulse Output: 0~10KHz |
| Communication | RS232 / RS485 Modbus |
| Power Supply | 10~36VDC / AC90~245V |
| Display | 320 × 480 Color TFT Screen Display |
| Temperature |
Transmitter: -40°F ~ 140°F (-20°C ~ 60°C) Transducer: -40°F ~ 176°F (-40°C ~ 80°C, TT01, TT02) Transducer: -40°F ~ 266°F (-40°C ~ 130°C, TT03, TT05) Transducer: -40°F ~ 356°F (-40°C ~ 180°C, TT02H) Transducer: 32°F ~ 149°F (0°C ~ 65°C, TT02S) Transducer: 32°F ~ 239°F (0°C ~ 115°C, TT03S) Transducer: -40°F ~ 266°F (-40°C ~ 130°C, Piping) |

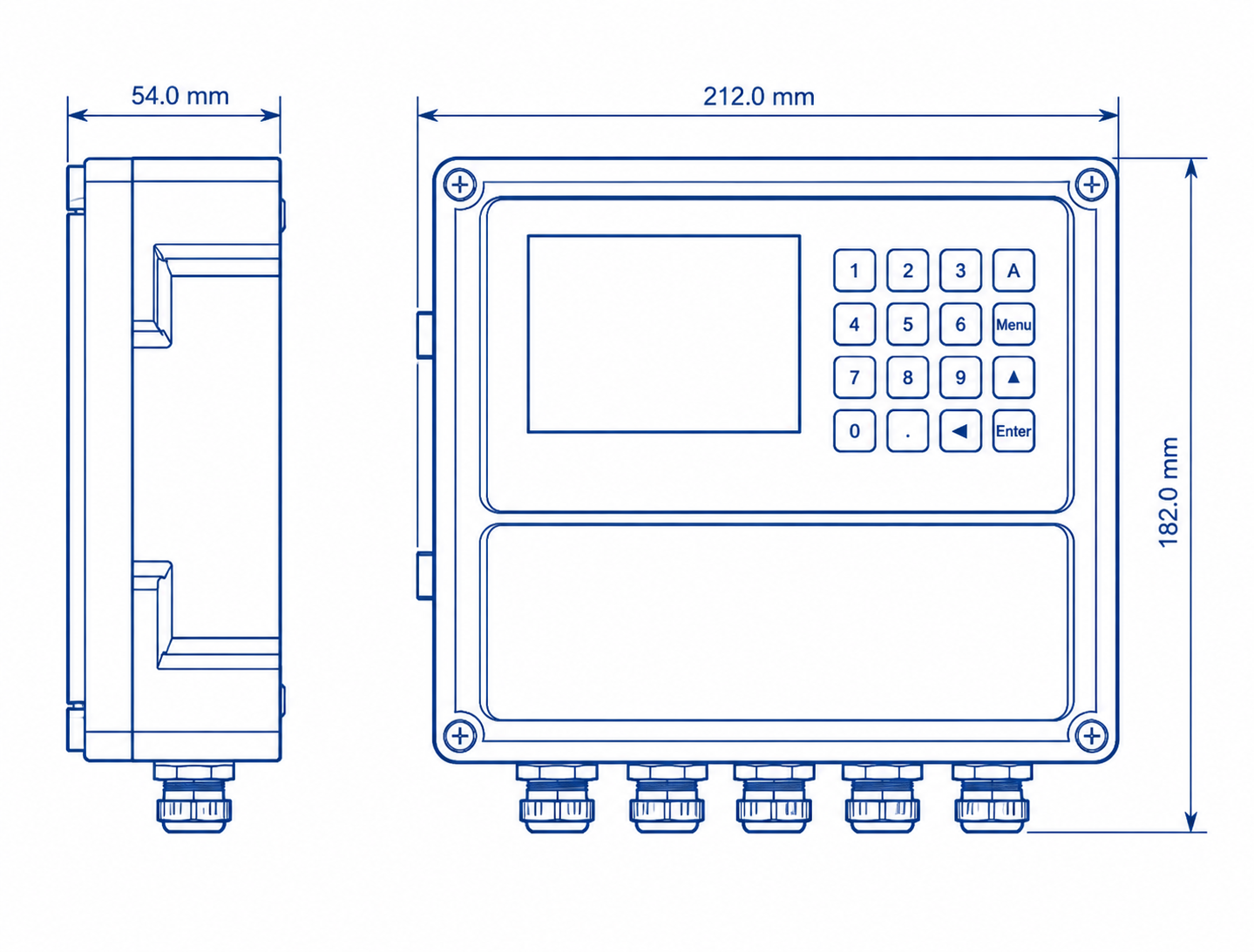

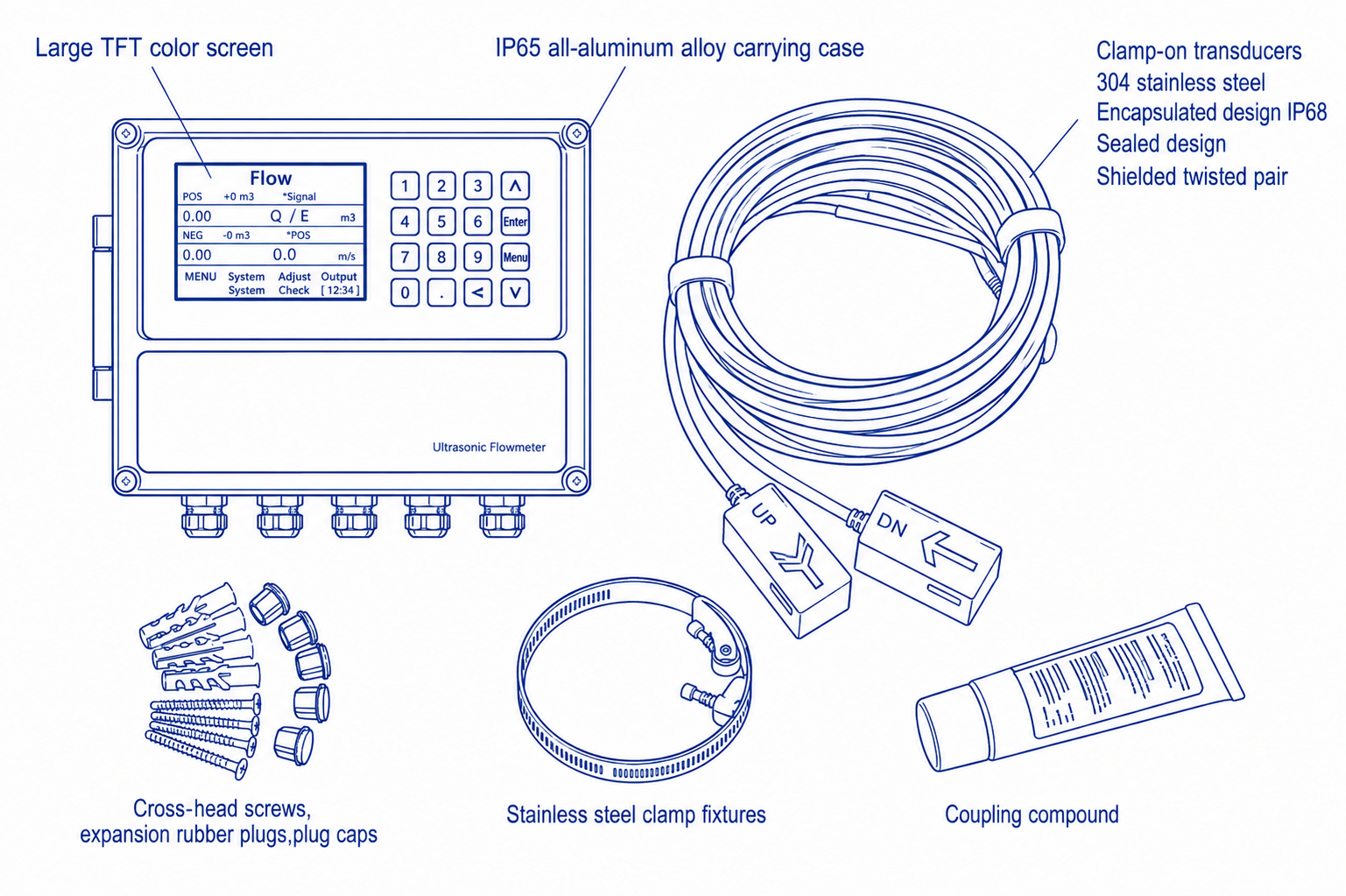

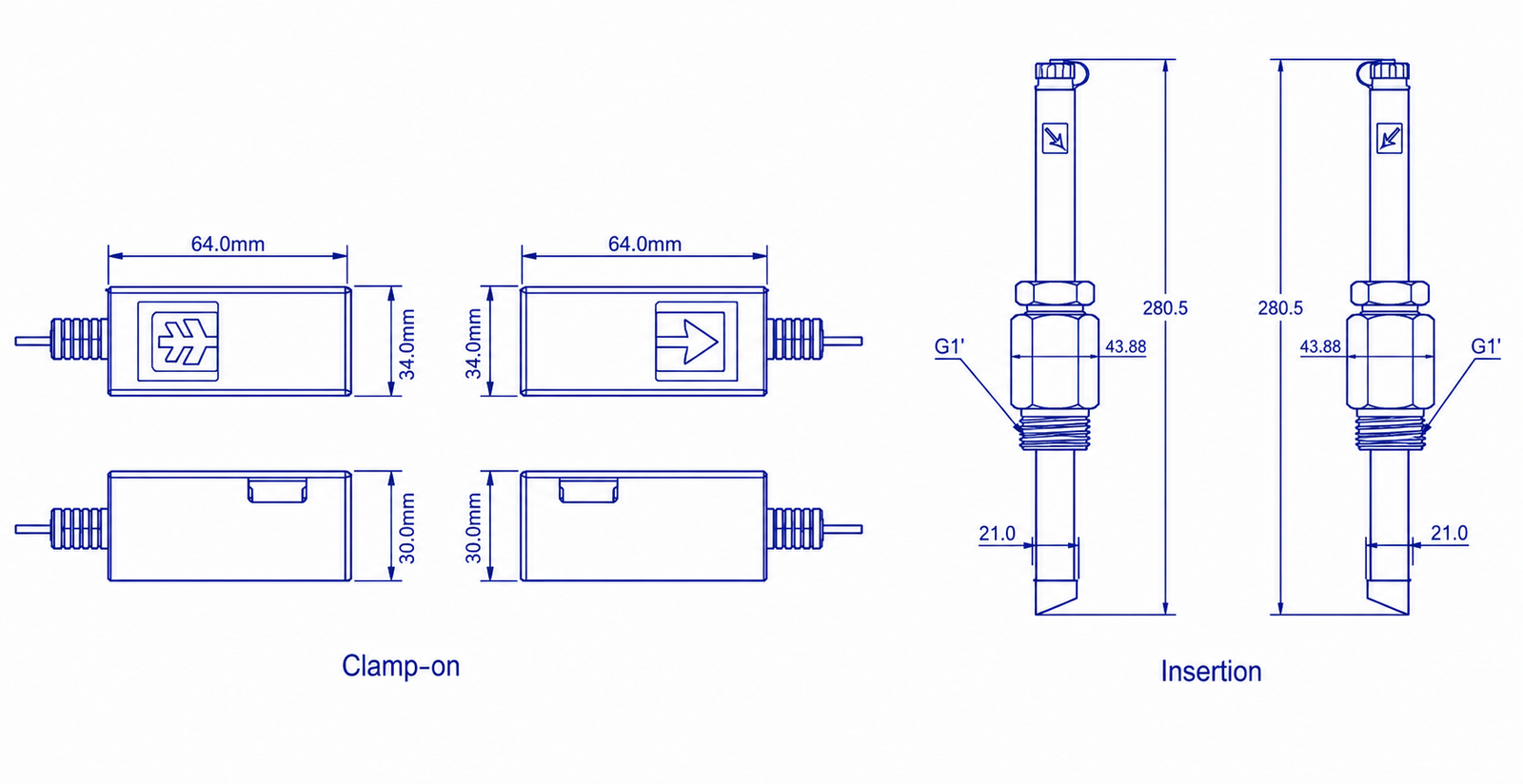

| Humidity | Up to 99% RH, Non-condensing |
| Physical | |
| Transmitter | Aluminum Alloy, IP65 |
| Transducer |
Encapsulated Design, IP68 Double-shielded Transducer Cable Standard / Maximum Cable Length: 30ft / 1000ft (9m / 300m) |

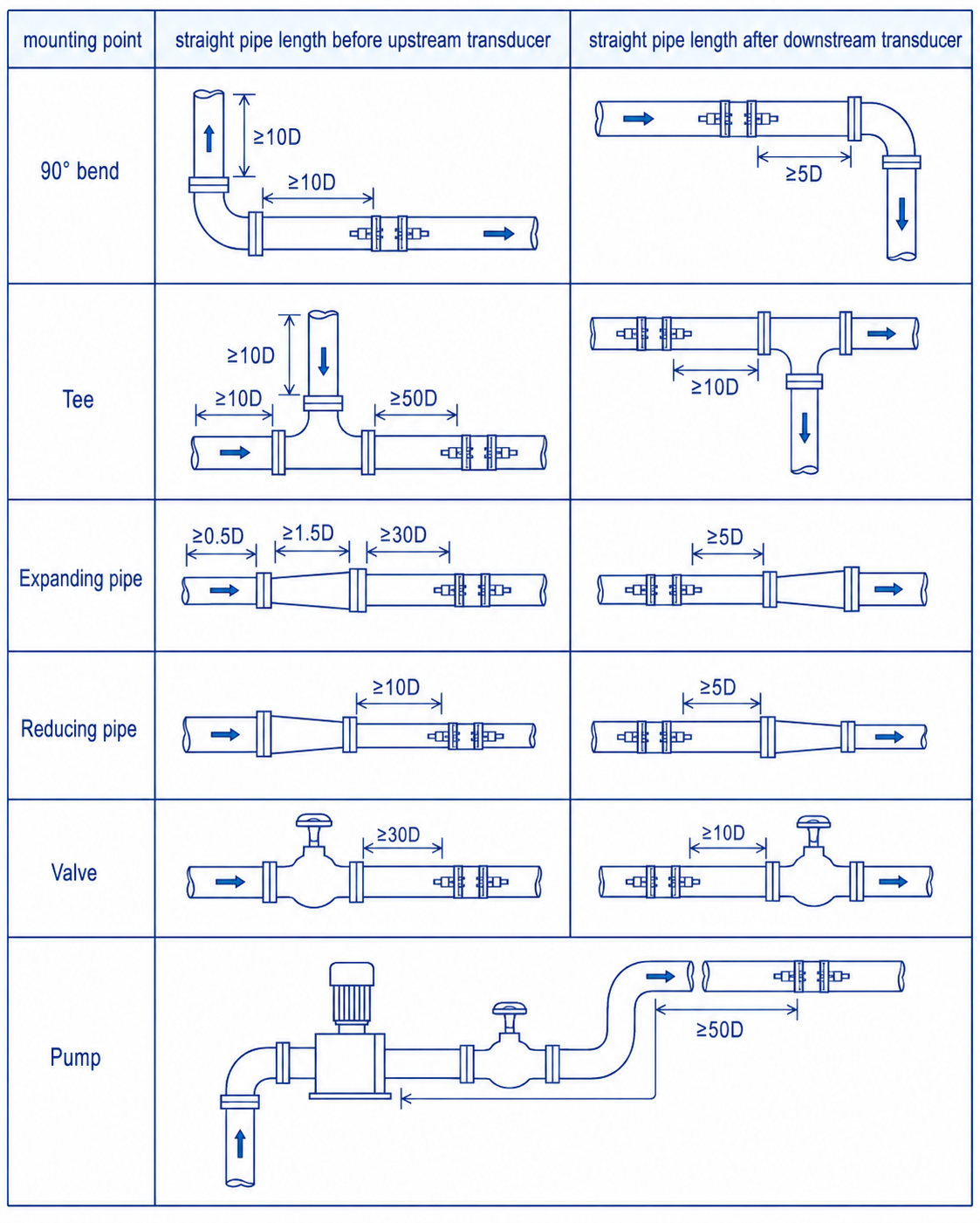

The first condition for using ultrasonic flowmeter is the pipe must be full of liquid. Bubbles in pipe will greatly influence the accuracy of the measurement. Please avoid the following installation position:
