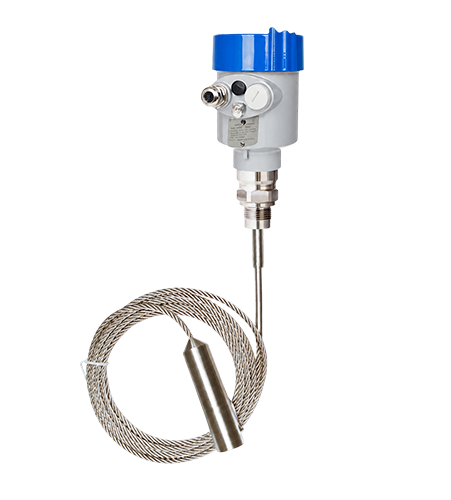

SRL611 GWR Cable Type Radar Level Transmitter uses guided wave radar (GWR) technology. Based on the reflection of microwave on the surface medium. Through the probe, continuous level measurement of liquid and solid levels is completed.
SRL611 GWR Cable Type Radar Level Transmitter uses guided wave radar (GWR) technology. Based on the reflection of microwave on the surface medium. Through the probe, continuous level measurement of liquid and solid levels is completed.
A guided wave radar level transmitter is also called a wave-guided radar level sensor. They can measure both levels and the interface between two media. Through probe rod or cable, complete level contact types continuous level measurement. Such as Coaxial Probe Guided Wave Radar Level Transmitter. This is different from ultrasonic level measurement, which is non-contact measurement. A guided wave radar level transmitter is often used for tank level measurement. Including liquid and solid. Output 4～20mA/HART, so as to measure and control the level during production.
| Applications | Liquid, Powder, Solid Particles |
| Measuring Range | 30 m |
| Frequency Range | 500 MHz ~ 1.8 GHz |
| Accuracy | ±10 mm |
| Process Temperature | -40°C ~ 250°C |
| Process Pressure | -0.1 ~ 4.0 MPa |
| Process Connection | Thread / Flange (Selective) |
| Protection Class | IP67 |
| Power Supply | 2-wire (DC24V); 4-wire (DC24V / AC220V) |
| Explosion-proof | Ex ia IIC T6 Ga / Exd ia IIC T6 Gb |
| Signal Output | 4~20mA / HART / RS485 / Modbus |
