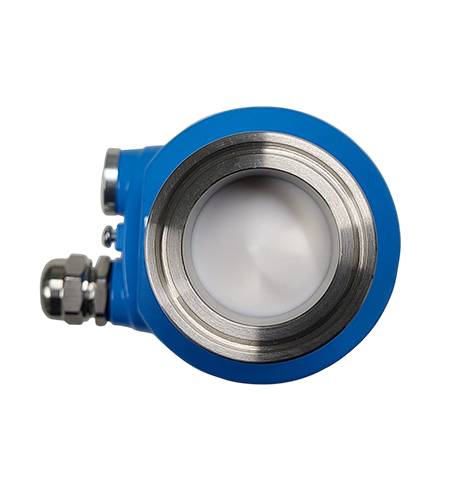

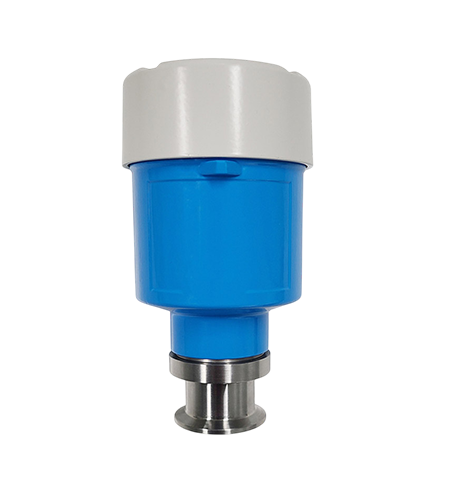

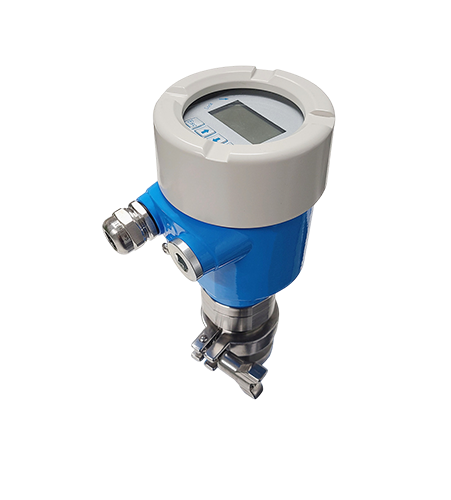

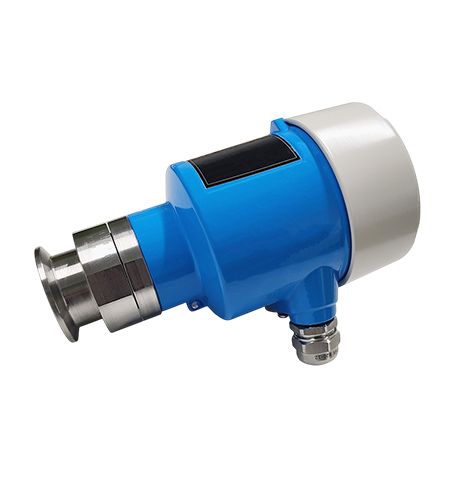

The SKE 80GHz sanitary radar level transmitter has been specially developed for measuring liquids in hygienic applications. The compact size and fittings can be selected as needed and only require minimal effort to install. Top display screen allows easy reading of level value– great for precise liquid level monitoring in food, beverage,and pharma industries.

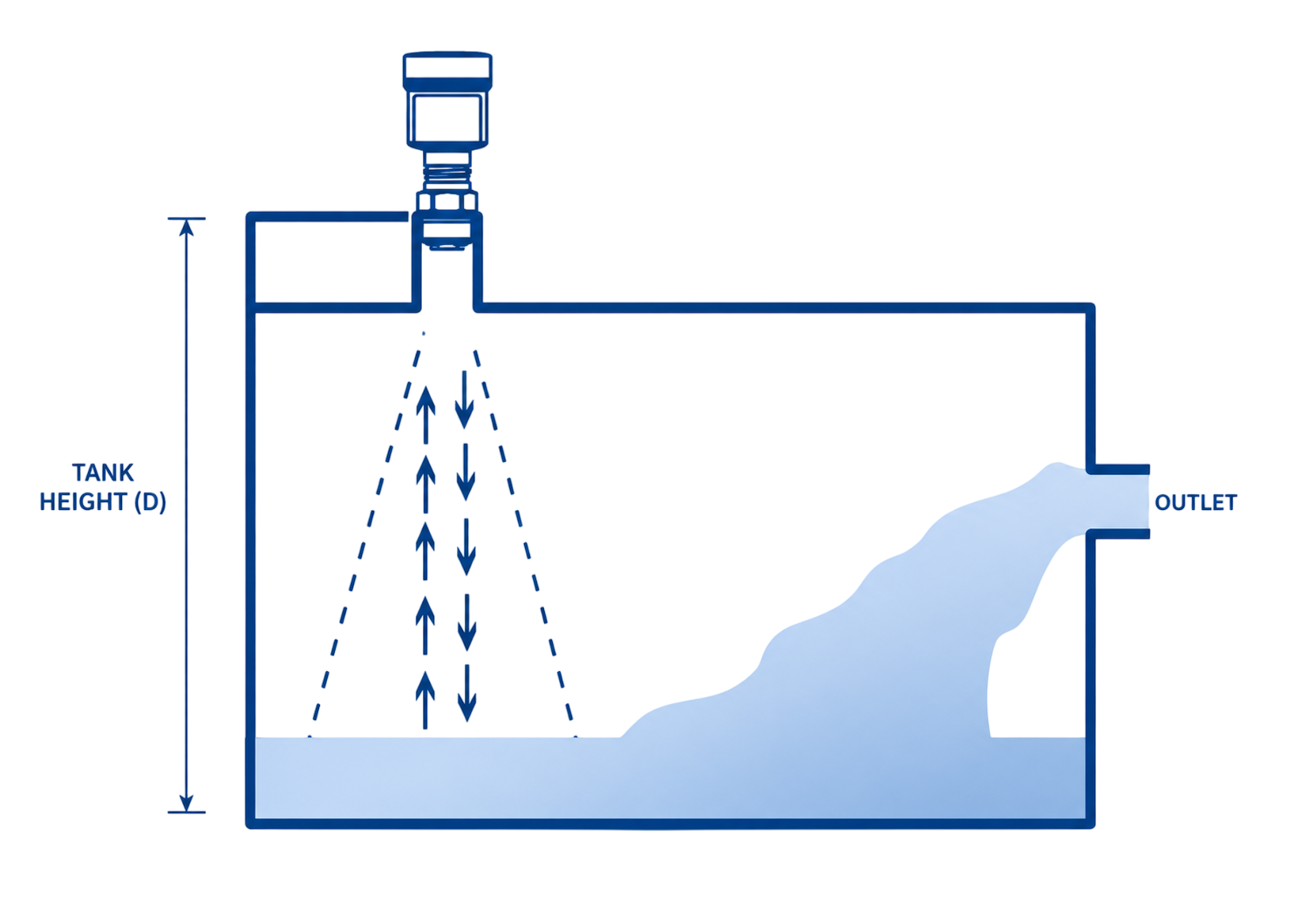

Frequency modulation continuous wave (FMCW) technology is adopted in the object level sensor of 80GHz radar level transmitter. The continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a certain frequency difference with the transmitted signal. The distance information between the target and the radar can be obtained by measuring the frequency difference.
| Radar Level | Two-wire System |
| Measuring Range / Distance | 10m / 20m / 30m |
| Accuracy | ±2 mm |
| Signal Output | 4~20mA / RS-485 / Bluetooth |
| Power Supply | DC 24V (18V~36V) |
| Ambient Temperature | -20°C ~ +70°C |
| Process Temperature | -20°C to 60°C (-20 to +140°F) |
| Ambient Humidity | 0% ~ 95% RH |
| Process Pressure | Normal Atmospheric Pressure |
| Weight | 2 kg |
| Material | Cast Aluminum |
| Protection Rating | IP67 |
